Please note this is a pre-order item. Please contact us to verify latest price and availability.

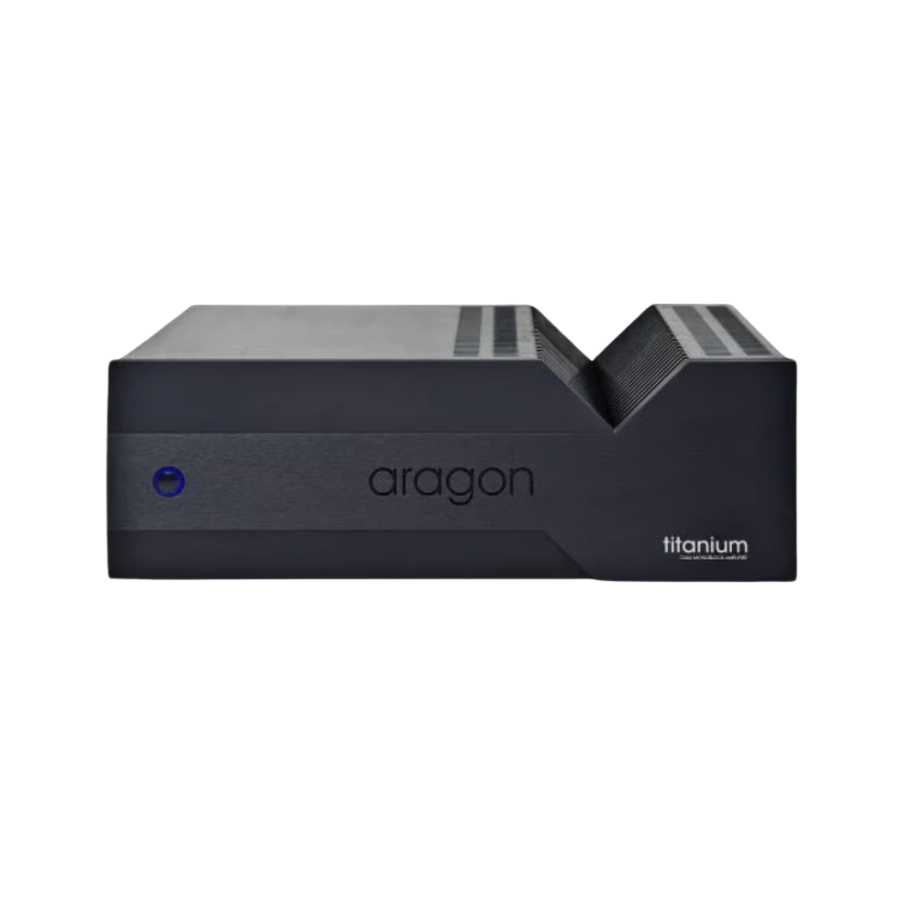

Wielding twin, independent power supplies, the Titanium dual monoblock amplifier provides the foundation for superior 2-channel listening in the Elements Collection.
- high-power, high-performance, two-channel amplification
- dual, symmetric power supplies
- class A/B amplifier topology with hand-matched transistor gain
- Ethernet-based control and status monitoring
- driver available for most commonly used control solutions
- readily interfaces with popular home control solutions
- software upgradeable
- solid American engineering and construction
- proudly made in the USA
| Specification | Primary Measurement | Secondary Measurement |
|---|---|---|
| power output | 200W into 8 ohms | 400W into 4Ω(max590W @1%dist.) |
| peak power | 295W (1%THD,8ohms,perCEA-2006) | |
| THD | 0.015% both channels driven | 0.030% both channels driven |
| frequency response | 5Hz to 20kHz +0/-1dB | 5Hz to 20kHz+0/-2.0dB |
| tim/dim distortion | 0.003% | |
| s/n | 110dB, A-weighted | |
| damping factor | 400, 8Ω @50Hz | |
| input sensitivity | 1W: 120mV (single-ended&balanced) | 200W: 1.7V (single-ended & balanced) |
| input impedance | 70kΩ (balanced) | 70kΩ (single-ended) |
| ethernet/RS-232 | full status and control of standby on, channel configuration | |
| 12V trigger | controls standby/on | |
| inputs | 2 XLR jacks | 2 gold-plated RCA jacks |
| outputs | 2 sets gold-plated, 60-amp insulated 5-way speaker binding posts | |
| power consumption | standby:<1W; idle:120W; max:1500W | |
| physical | 7” (17.8cm) x16” (40.6cm) x19” (48.3cm | 63lbs (28.6kg) |

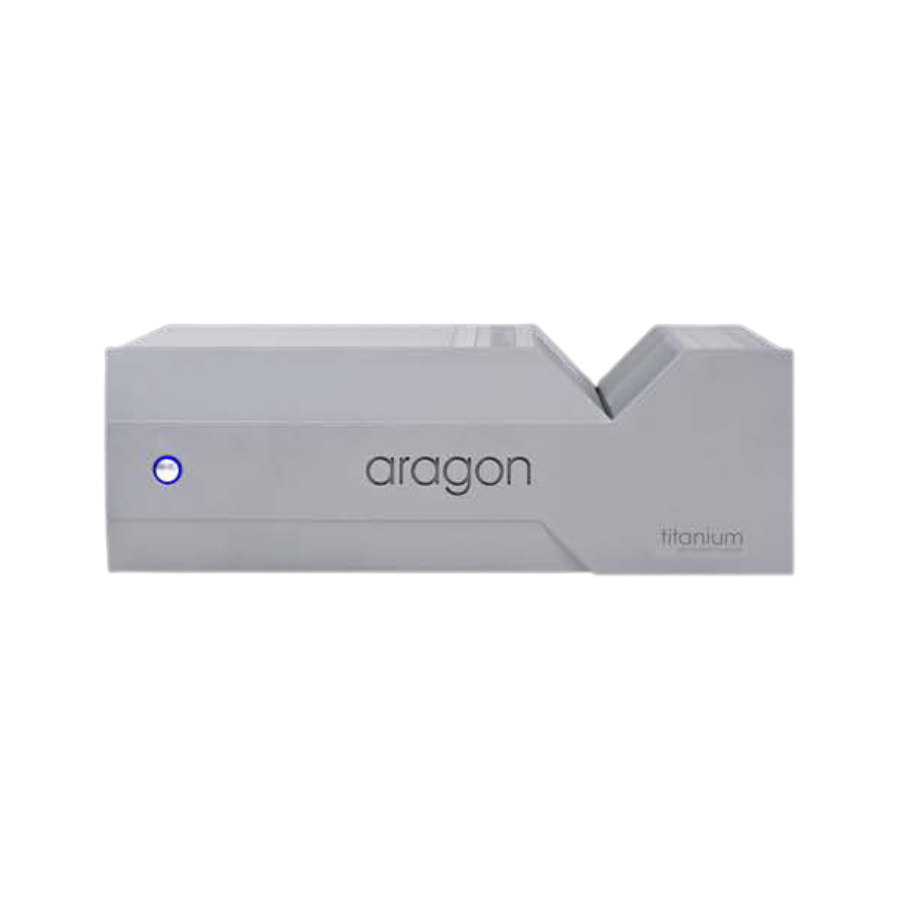

| colors | black or silver with a satin anodized finish | laser-etched logo |
