Since 1996, DreamVision, in the shadow of the world-famous Montmartre hill in Paris, has been developing and refining the latest advancements in digital display technology in order to provide state-of-the-art video products for Home Cinema. This new projector’s chassis was created by the famed French designer, Antoine Béon.

SPECIFICATIONS

Model
Eos 1-L

Standard Pack
R9202201

Panel Resolution
3 x 4096 x 2160 (4K Resolution)

Panel Technology
3-chip LCOS 0.69” panels

Display Resolution
8 192 x 4 320 (8K with UHD Interpolation)

Signal Compatibility
UHD Blu-ray disks up to 8K60p / 4K120p
HDR 10+ content with 2 dynamic tone mappings and Frame Adapt HDR
HLG (Hybrid Log Gamma) broadcasting and streaming services
High Frame Rate and Low Latency gaming Consoles

Optic
Standard Full-glass 65 mm Lens (2x zoom)

Throw Ratio (16:9)
Motorized zoom: 1.44:1 – 2.88:1

Screen Offset (16:9)
Motorized lens shift:
±80% vertically
±34% horizontally

Screen Size
60” – 200” diagonal

Lamp Consumption
BLUEScent Laser Diode – up to 20 000 hours or 20 years (no replacement needed)

Brightness
2 200 Lumens

Native Contrast Ratio
40 000:1

Dynamic Contrast Ratio
Infinity:1

Color Modes
REC.709 (HDTV)

Expert Calibration
Yes (for calibration expert only)

Picture Modes
4 Presets + Film + 6 Users + 2 Installation Expert only

Color Space Profiles
9 Presets + 6 Customs

Noise Level
Less than 22 dB (in low mode)

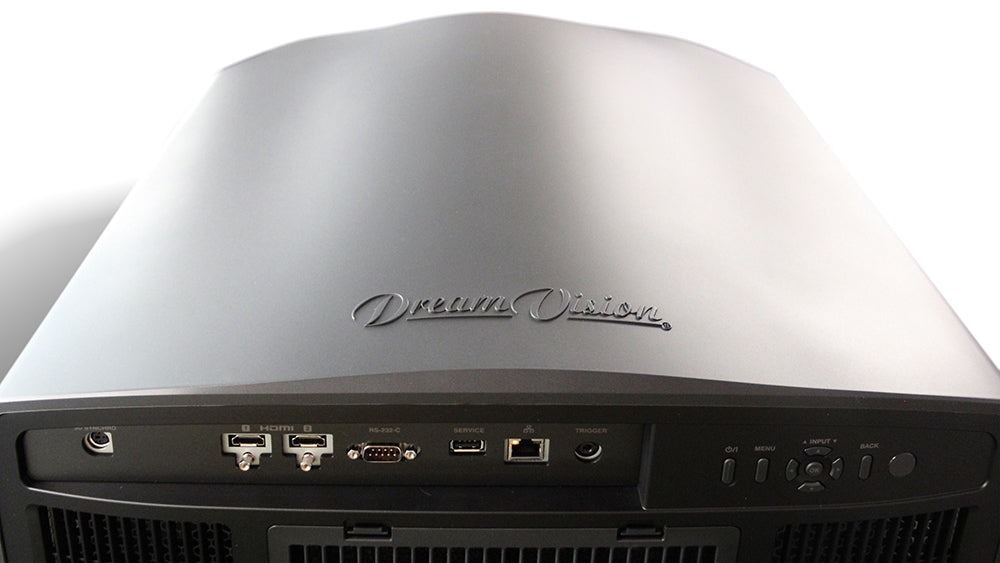

Inputs
1x HDMI 2.1 (with HDCP 2.3 and 48 Gbps transmission band)
1x HDMI 2.0b (with HDCP 2.2 and 18 Gbps transmission band)

Home-cinema Video Processing
HDR10+ Auto-Tone mapping
EOTF and Hybrid Log gamma
HDR Picture modes with Perceptual Quantization (PQ)
HDR colorimetry and MaxCLL / MaxFALL meta-data
Low Latency/Game mode @120Hz gaming experiences
Blur Reduction, 400 Hz Crystal Motion®
Theater Optimizer Function

3D Compatibility
Frame Packing, Side-by-Side, Top & Bottom

Home Automation Control
RS-232 (Dsub 9) / LAN RJ45 / 12V Trigger (100mA)

Power and Consumption
AC 110~240V 50/60Hz 420 W
0.3W in Standby Eco-Mode
1.5W with LAN

Dimensions (WxHxD)
50 x 26 x 50.5 cm
(19.7” x 10.1” x 19.9”)

Box dimensions (LxWxH)
66 x 65 x 44 cm – 30 kg (66.1 lbs)

Weight
26 kg (57.3 lbs)

3D options
RF Active Shutter 3D glasses (R1048223)
RF 3D Dongle (R1048229)

Ceiling Mounts
Fixed Position (R9852068)
Motorized 1 meter Lift (M9201400)
Motorized 2 meters Lift (M9201404)

Other options
Cinemascope Lens, special colors and finishes on demand or RAL, Passive 3D Glasses.
