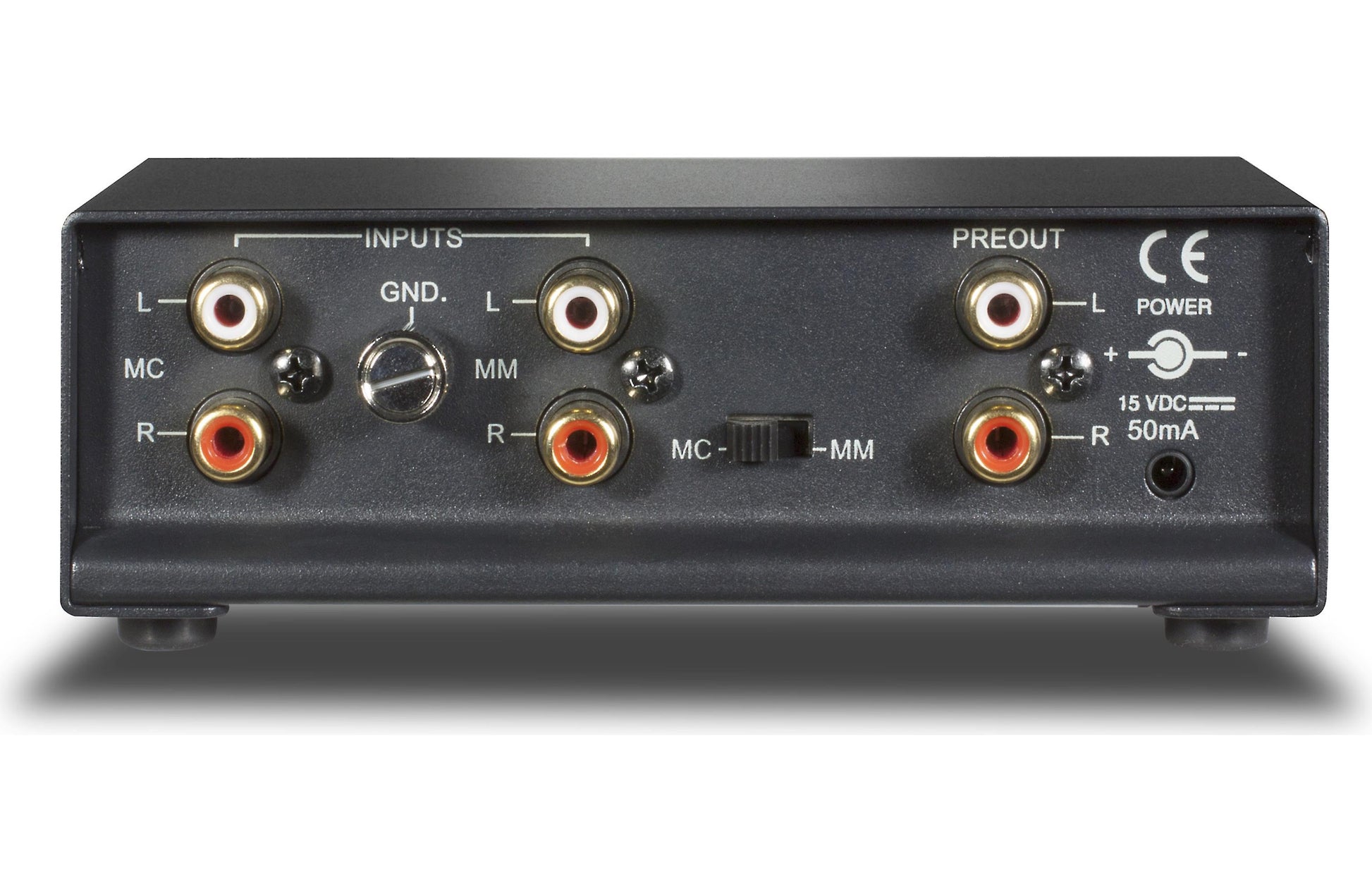

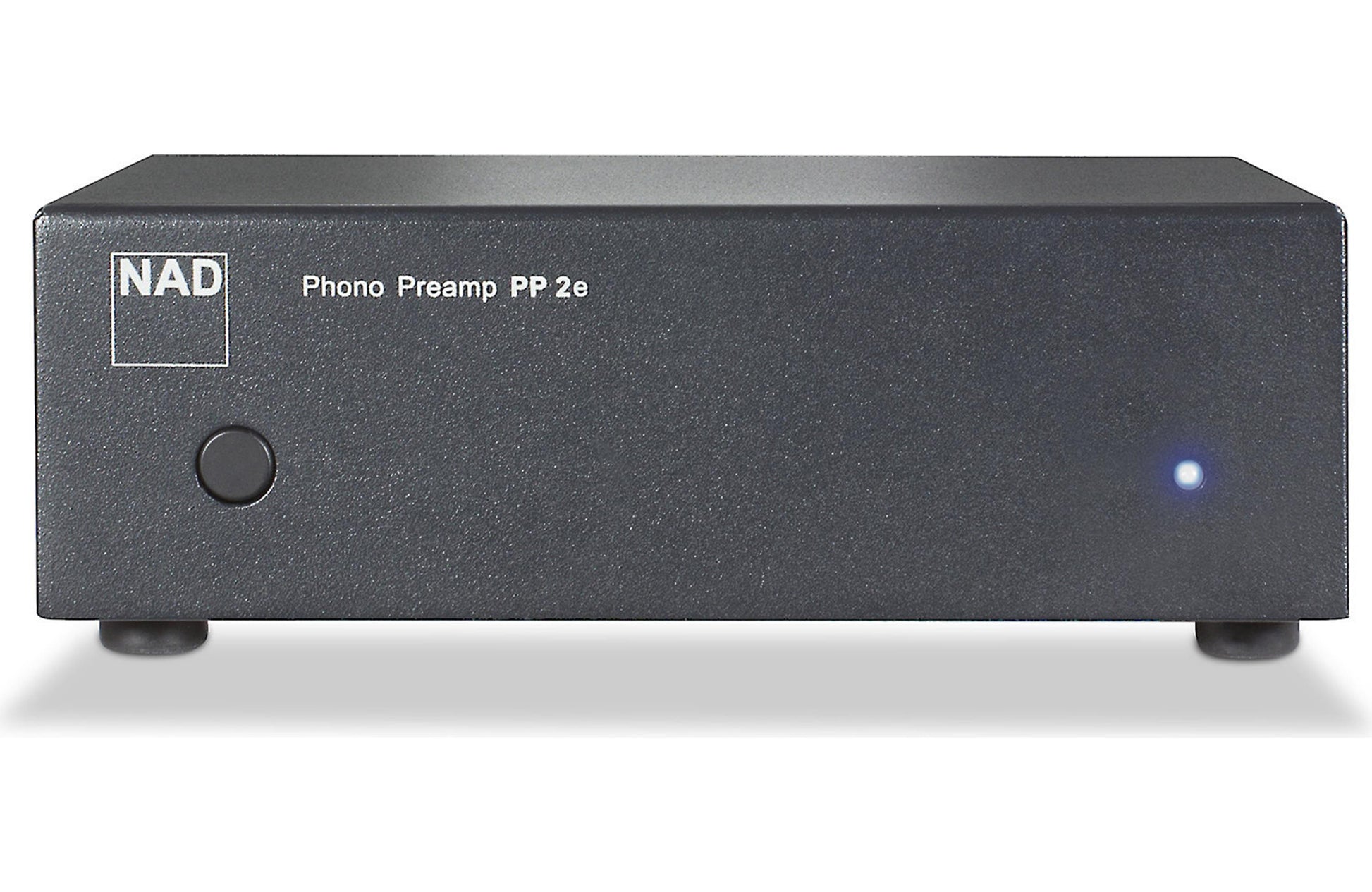

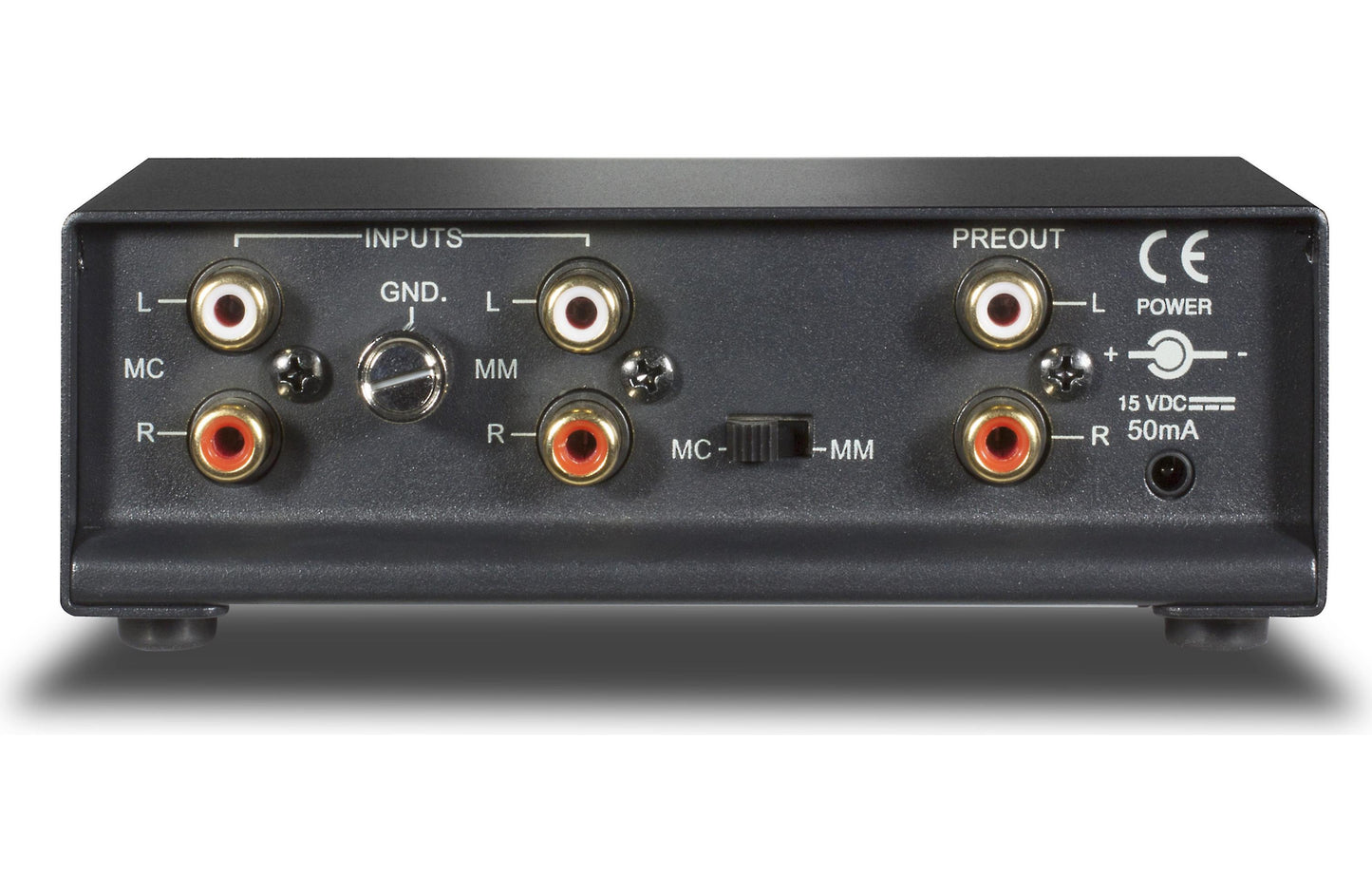

NAD PP2e PHONO PRE-AMP

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. This allows the PP 2e to be paired with any turntable, giving consumers unlimited choice in building their system. The PP 2e’s Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use. Built to be the best companion to one’s turntable setup, the PP 2e breathes life back into the vinyl you love.

  • Low noise, wide band MM & MC phono stage
  • Connect your turntable to almost all amplifiers and receivers
  • External 24 volt power supply
  • Gold plated input sockets
  • High quality components
  • LED power indicator

MC

  • Input Impedance (R and C)
  • 100 Ohm + 180pF
  • Gain at 1kHz
  • 60dB
  • Input Sensitivity (ref. 200mV output)
  • 0.3mV
  • Signal to Noise Ratio
  • 78dB (A weighted, with cartridge connected)
  • Input Overload (20Hz/1kHz/20kHz)
  • 0.8/9/84mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA Response Accuracy
  • ±0.3dB

MM

  • Input Impedance (R and C)
  • 47 kilohm + 200pF
  • Gain at 1kHz
  • 35dB
  • Input sensitivity (ref. 200mV output)
  • 2.5mV
  • Signal to Noise Ratio
  • 80dB (A weighted, with cartridge connected)
  • Input overload (20Hz/1kHz/20kHz)
  • 10/102/950mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA response accuracy
  • ±0.3dB

Line Out

  • Output Impedance
  • 100 Ohm
  • Maximum Output Level
  • 5.3V

General Specifications

  • AC Supply
  • External 23.5V DC
  • Dimensions excl. Power supply (W x H x D)
  • 135 x 49 x 72mm
    5 5/16 x 1 15/16 x 2 7/8″
